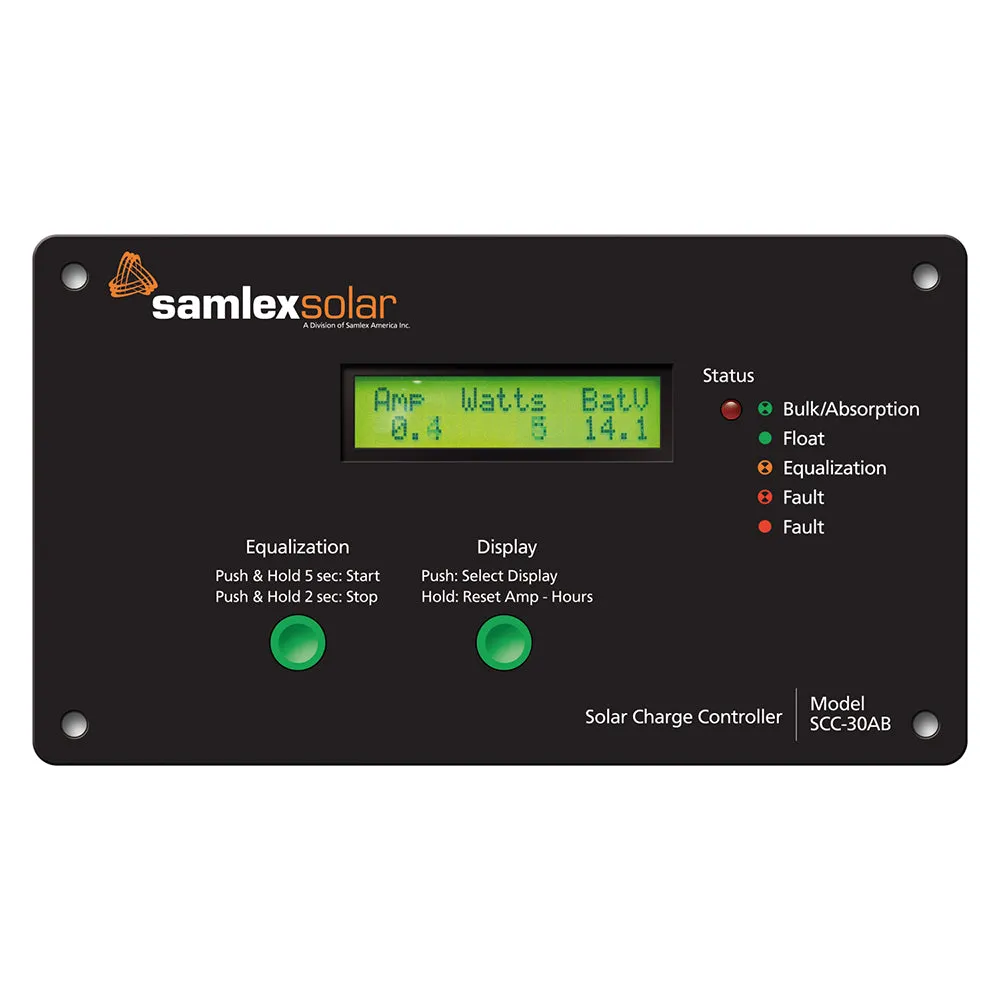

Flush Mount Solar Charge Controller w/LCD Display - 30A

The Samlex 30 Amp Charge Controller regulates current and protects your batteries from over-charging. Features of this 4-stage Charger include: LED status indicators, digital LCD monitor and 8 charge settings for most battery types. Charging is further regulated with the optional DC-BTS-A-C Battery Temperature Sensor.

Features:

• Pulse Width Modulated (PWM) charging – most efficient and effective way to charge batteries
• 4-stage battery charging: Bulk, Absorption, Float and manual / automatic Equalization
• 8 selectable battery charging profiles for easy setup
• Temperature compensated charging with optional Temperature Sensor
• Digital LCD Monitor for informative display of operational parameters and fault messages

Specifications:

• Input: 12V / 24V
• Amps: 30 Amp
• Weight: 0.8 (lbs)
• Weight: 0.36 (kg)
• Dimensions: 7.5 x 4.25 x 1.5 (in)
• Dimensions: 19.1 x 10.8 x 3.8 (cm)
• Warranty: 5 Year Limited

Applications:

• Recreation vehicles
• Service vehicles
• Boats
• Field work
• Telecommunications
• Mobile offices
• Construction sites
