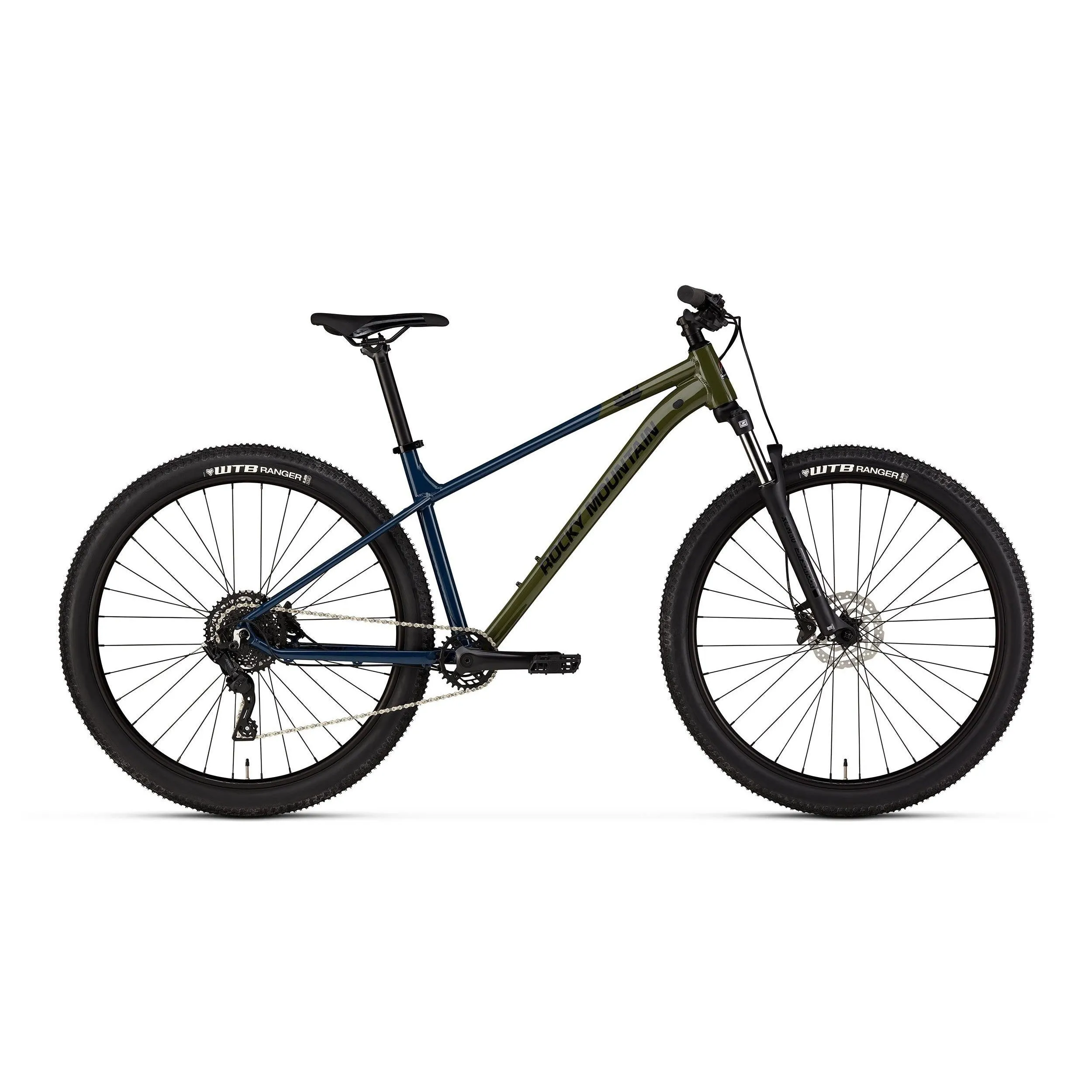

The Fusion is the perfect blend of efficiency, capability, and reliability on the trail. The Fusion’s responsive handling characteristics and comfortable geometry will help you mix up your ride from the pathway, to the trail, and onto the singletrack. The Fusion’s geometry has been optimized to provide you with the best possible experience when heading out for a ride.

Intended use: Adventure

Frame: Rocky Mountain 6061 Alloy | Threaded BB | Zero Stack Tapered Headtube Rear Triangle
Fork: Suntour XCM 100mm
Front Travel: 100
Headset: Rocky Mountain | Loose Ball Bearings | 1-1/8" Reducer Crown Race
Stem: Rocky Mountain 31.8 XC | 7° Rise | All Sizes = 50mm
Handlebar: Rocky Mountain XC | 740mm Width | 25mm Rise | 9° Backsweep | 5° Upsweep | 31.8 Clamp
Grips: Rocky Mountain Lock On Light
Brakes: Shimano MT4100 2 Piston | Resin Pads | F:Shimano RT10 160mm | R:Shimano RT10 160mm
Shifters: MicroShift Xpress Plus 9spd
Rear Derailleur: MicroShift Advent With Clutch
Cranks & Chainring: Rocky Mountain Microdrive 3PC | 30T |76mm Asymmetrical BCD | Crank Length: XS-SM-MD = 170-mm | LG -XL = 175mm
Bottom Bracket: Sealed Cartridge Bearing
Cassette: MicroShift CS-H093 11-42T
Chain: KMC X9
Front Hub: Shimano TX505
Rear Hub: Shimano TX505
Spokes: 2.0 Stainless
Rims: Rocky Mountain TR25 Tubeless | 32H | Tubeless Compatible - Tape / Valves / Sealant Not Incl
Tires: F: WTB Ranger Comp 29 x 2.25 // R: WTB Ranger Comp 29 x 2.25
Seatpost: Rocky Mountain 30.9mm
Saddle: Rocky Mountain 148 Steel
Weight: 30.58|13.9 KGS
Notes: We make every effort to ensure accuracy, but reserve the right to update specifications & prices without notification.
