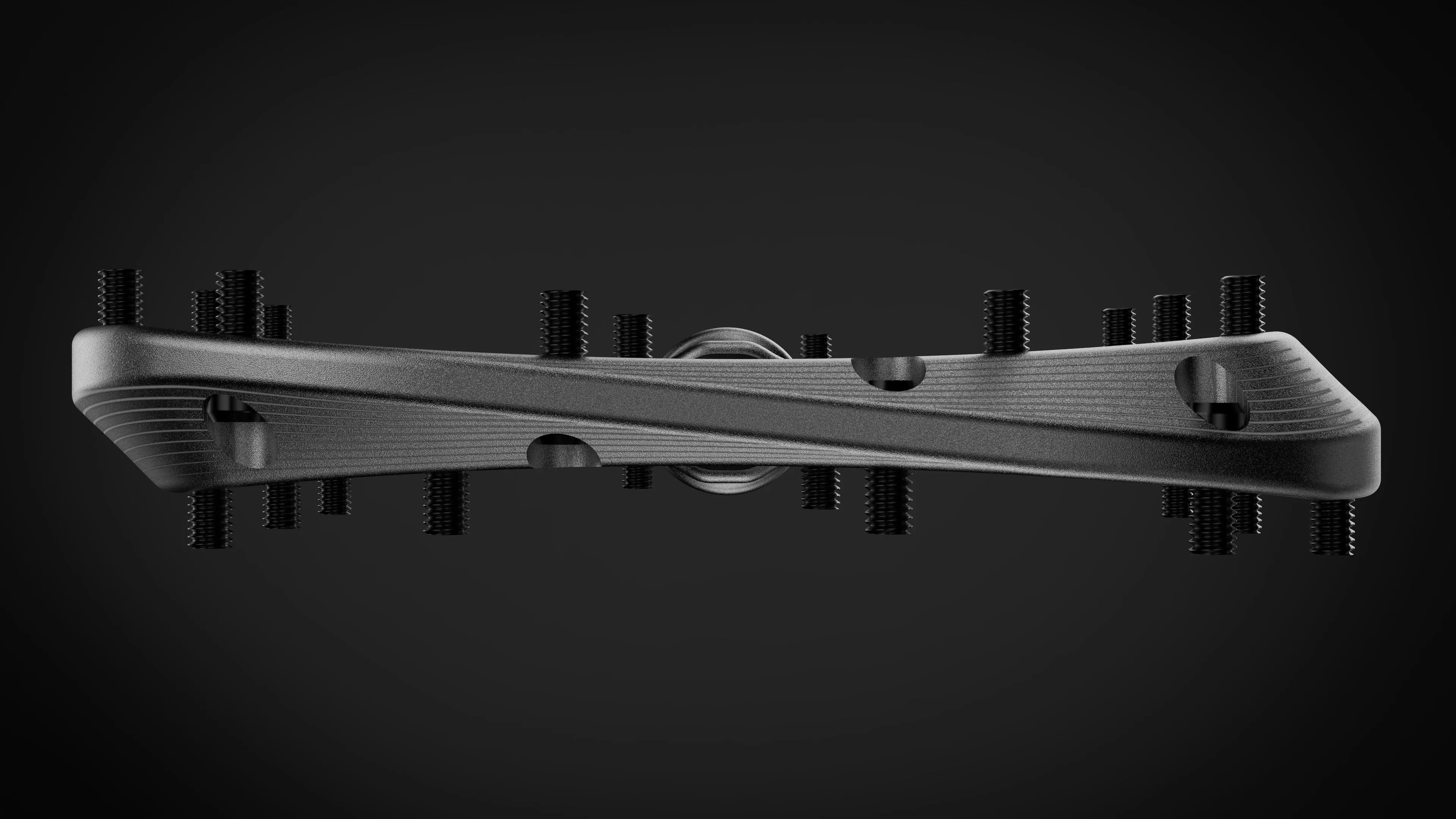

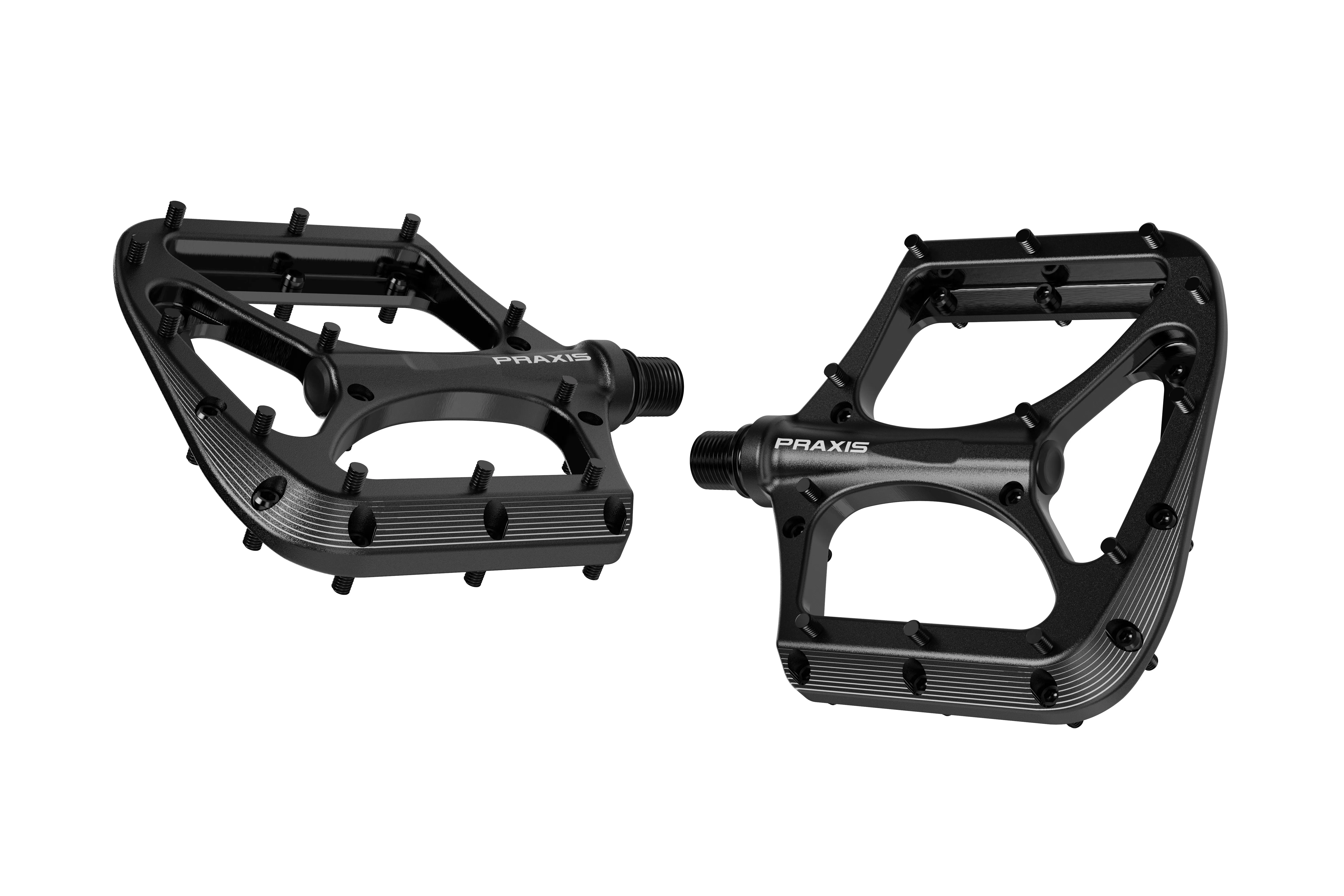

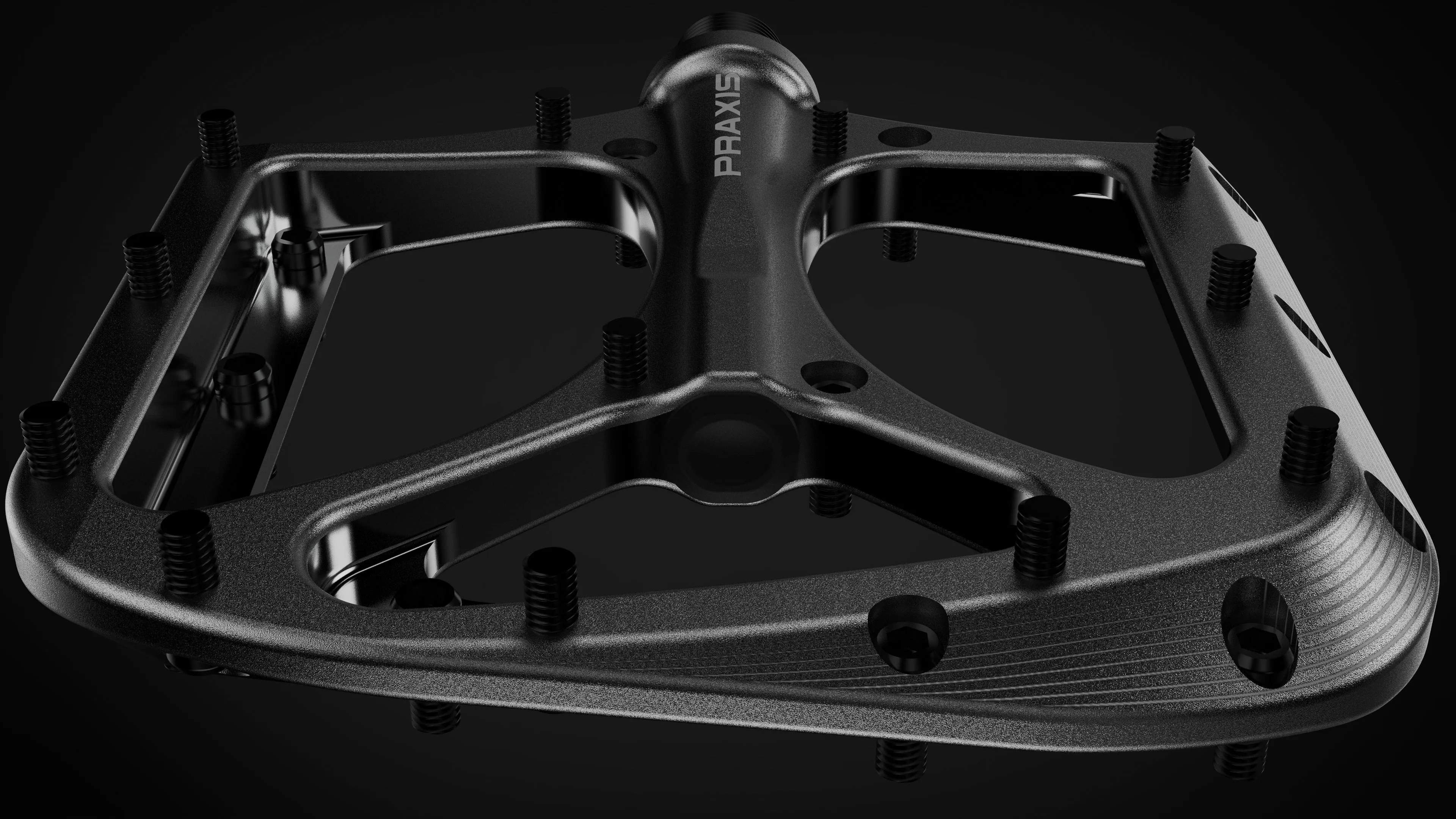

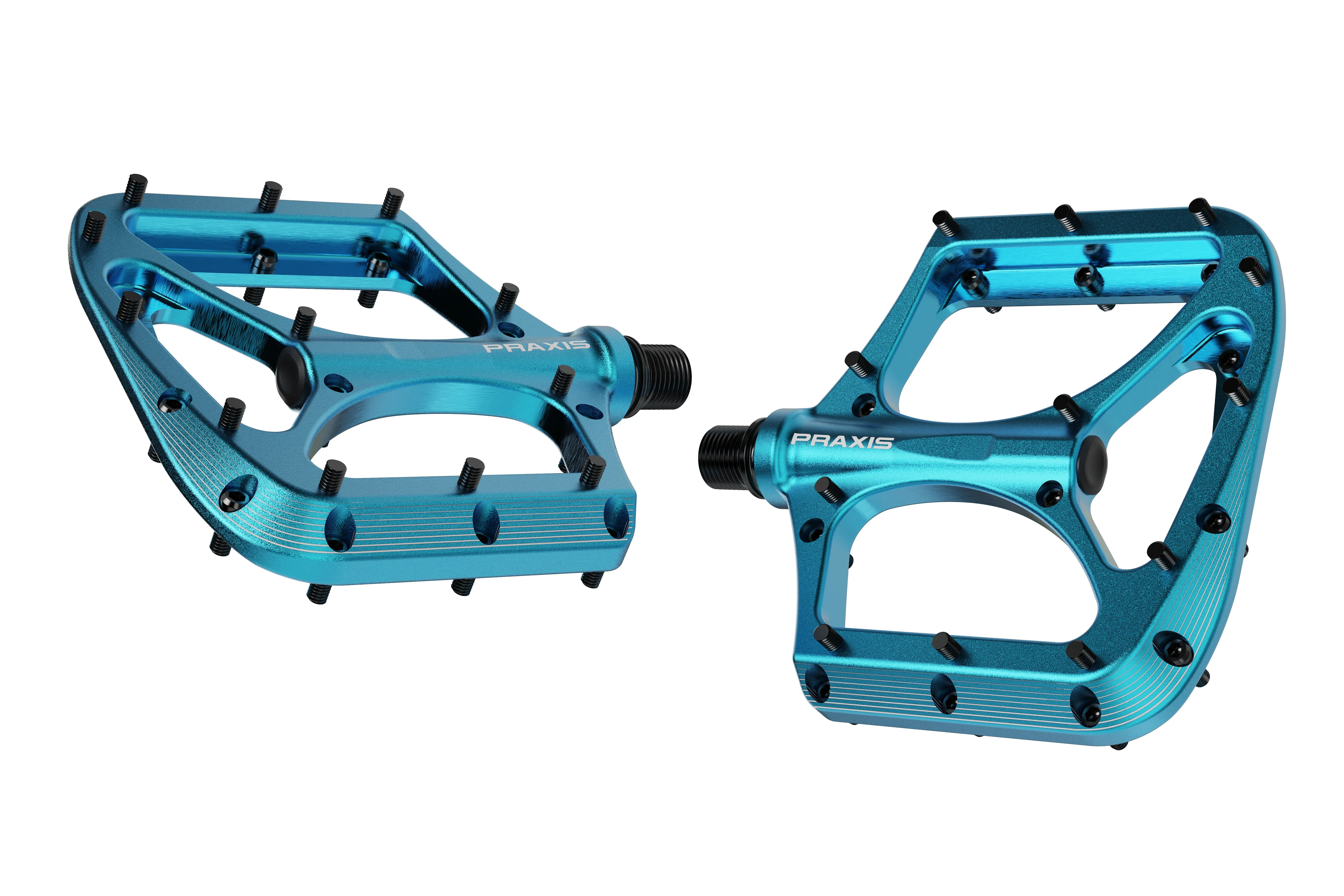

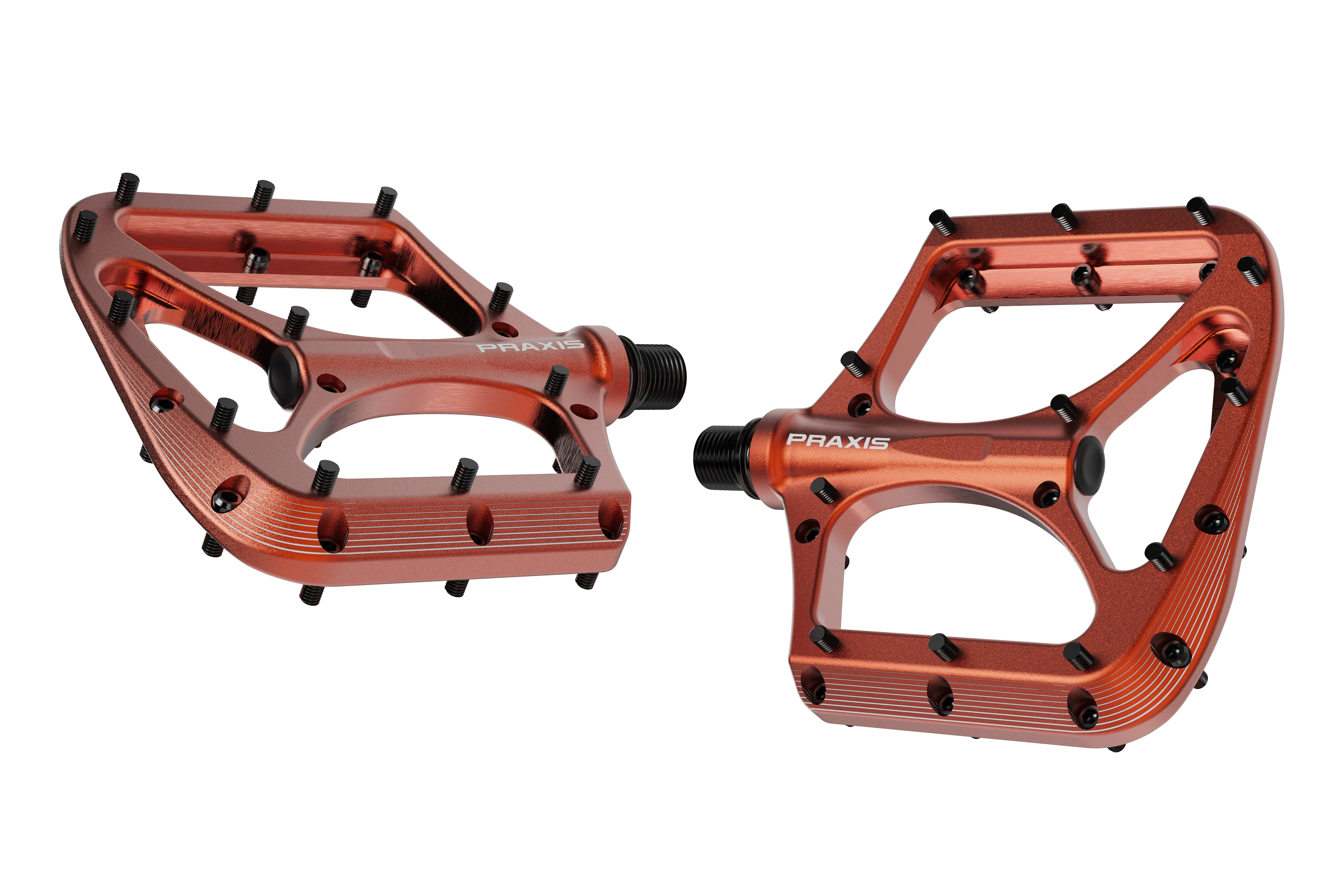

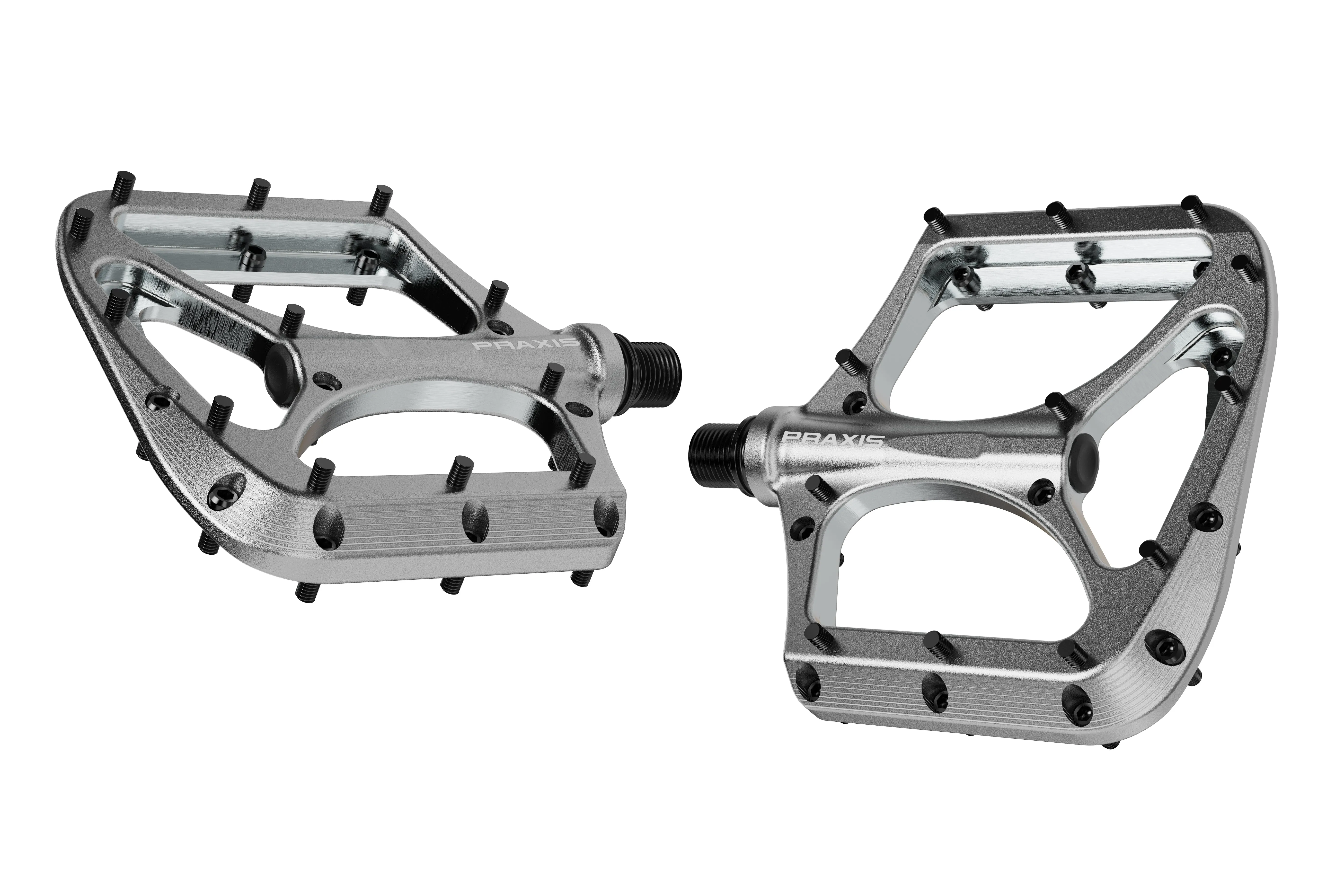

Welcome to the BRODIUM, the new performance mountain bike alloy flat pedal with a serious pedigree. Inspired by the original Gamut Podium with it’s organic shape and concave platform to grip your foot.
| SPECIFICATIONS | |
|---|---|
| INSTRUCTIONS | |
| BODY | Forged and CNC | 6061-T6 Aluminum Low profile - 3mm Concave platform 12 stainless steel black pins per side with pre-applied Loctite |
| FOOTPRINT | 14mm - Height 115mm - Length 112mm - Width |
| AXLE | Forged Heat-treated 4140 chromoly spindle 8mm Allen for easy install/removal |
| PINS | - 48 stainless steel rear-loading pins installed/included - M4 threaded so other M4 grub pins also compatible - 3mm Allen for install/removal - Allows you to customize your pin layout with a total of 12 pins per side |
| WEIGHT | 399g pair with Steel pins |
| BEARINGS BUSHINGS | 3 High-Grade Sealed Cartridge Enduro Bearings per pedal 1 Igus Bushing per pedal |
| REBUILD KIT | SOLD SEPARATELY - Axle Kit - Bearing/Bushing Rebuild Kit |
| EXTRA | Included extra : - 12 M4 pins - 24 pin spacers for customizing pin height |
| RIDER NOTES | - Torque the pedal axle to the Crank 35-40Nm. - Pedal Washers : are not required but may use up to 2mm pedal washers per side. - Crank Boots : Compatible with most rubber crank protector/boots in the market. |
